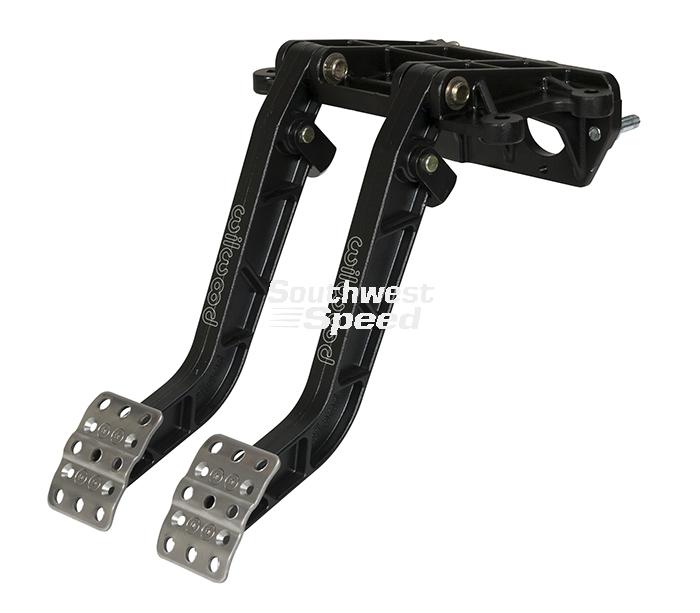

BRAND NEW WILWOOD FORWARD SWING MOUNT BRAKE & CLUTCH PEDAL COMBO ASSEMBLY WITH ADJUSTABLE PEDAL PADS, 7:1 RATIO (WILWOOD PART #340-14361).
THIS PEDAL SET IS DESIGNED TO ACCEPT HORIZONTAL MOUNTED, TANDEM MASTER CYLINDERS.
WILWOODS SWING MOUNT TANDEM BRAKE AND CLUTCH ASSEMBLY SIMPLIFIES INSTALLING A TANDEM OUTLET, SINGLE PUSHROD BRAKE MASTER CYLINDER IN CONJUNCTION WITH A HYDRAULIC CLUTCH MASTER CYLINDER IN A FORWARD POSITION OUTSIDE THE FIREWALL. IT FEATURES A LIGHTWEIGHT ALUMINUM FRAME, WITH HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED PEDAL ARMS. THE NON-SKID WAFFLED PEDAL PADS CAN BE LATERALLY ADJUSTED FOR DRIVER PREFERENCE OR CLEARANCE AS NECESSARY. WILL FIT MOST TANDEM CYLINDERS AVAILABLE WITH 3.25 HORIZONTAL BOLT SPACING. PEDAL BASE HAS ADDITIONAL MOUNT POINTS FOR VERTICAL MOUNT 2.50" SPACING TANDEM MASTER CYLINDERS USING 5/16-18 STUDS (NOT SUPPLIED WITH PEDAL ASSEMBLY). CLUTCH MASTER CYLINDER MOUNT IS ALSO A 2.50" VERTICAL MOUNT AND WILL USE MOST POPULAR SINGLE OUTLET CYLINDERS.
BRAKE AND CLUTCH PEDAL HAVE 7:1 RATIO
FULLY ADJUSTABLE ALUMINUM PEDAL PADS WITH WAFFLE STYLE NON-SLIP SURFACE
HIGH STRENGTH FORGED ALUMINUM LADDER STYLE PEDAL ARMS
EASY MOUNTING LOCATION WITH FULL INTERCHANGEABILITY WITH WILWOOD PEDALS OF THE SAME TYPE AND STYLE
WE ALSO HAVE THE 6.25:1 RATIO PEDAL SET AVAILABLE HERE.
