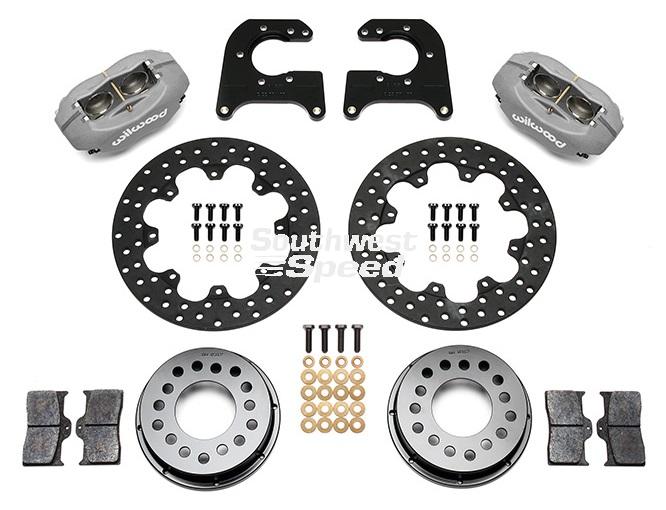

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

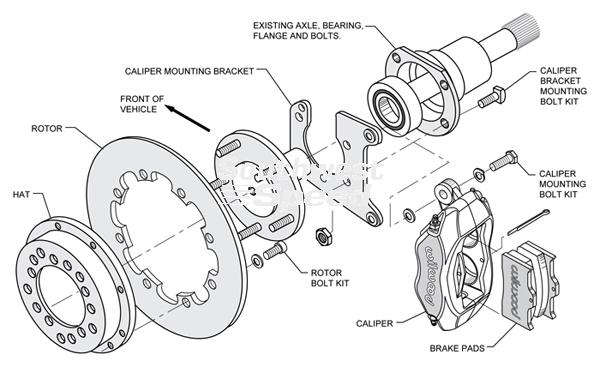

WILWOOD BOLT-ON REAR DISC BRAKE KIT FOR MOPAR 8 3/4" & DANA 60 REAR ENDS WITH A 5 BOLT MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)
THIS KIT REQUIRES THE USE OF SNAP RING STYLE GREEN BEARINGS (MO400)
FEATURING DRILLED ROTORS & GRAY CALIPERS
WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
FDL REAR DRAG KITS ARE TRUE BOLT-ON KITS
KITS IN THIS GROUP ARE PURPOSE BUILT FOR SPORTSMAN CATEGORY DOOR CARS AND OTHERS WITH FULL FUNCTIONAL FOUR-WHEEL DISC BRAKES
MOUNTING KITS SECURELY INSTALL THE FOUR-PISTON FORGED DYNALITE CALIPER OVER 3/8" PLATE STEEL ROTORS THAT ARE MOUNTED TO THE AXLE WITH AN ALUMINUM HAT
MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE

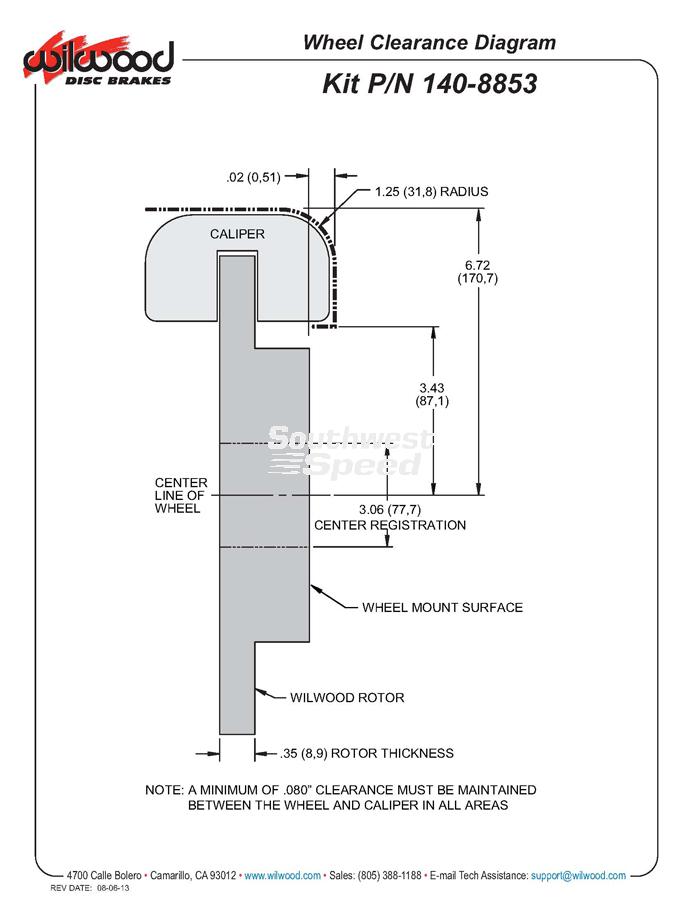

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
KIT INCLUDES: *DRILLED, .350" THICK x 11.44" O.D. ROTORS, *FORGED DYNALITE CALIPERS - GRAY, *CALIPER MOUNTING BRACKETS, *BP-10 BRAKE PADS, *BRAKE HATS, & *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
COMPLETE KIT WEIGHS APPROXIMATELY 26 LBS.
YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
