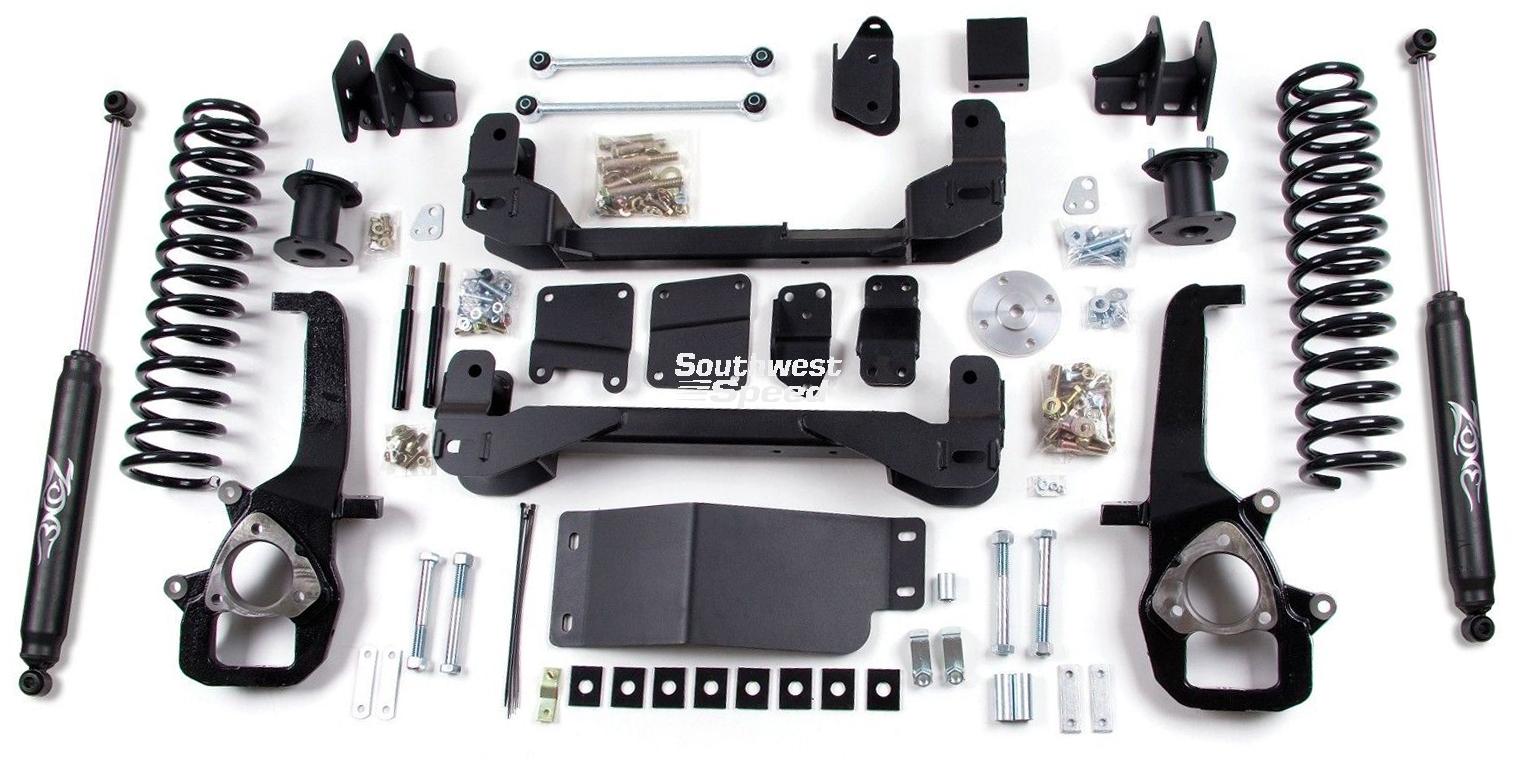

BRAND NEW ZONE OFFROAD 6" STRUT SPACER LIFT KIT WITH NITRO SHOCKS - LEVEL REAR (PART #ZOND19N).

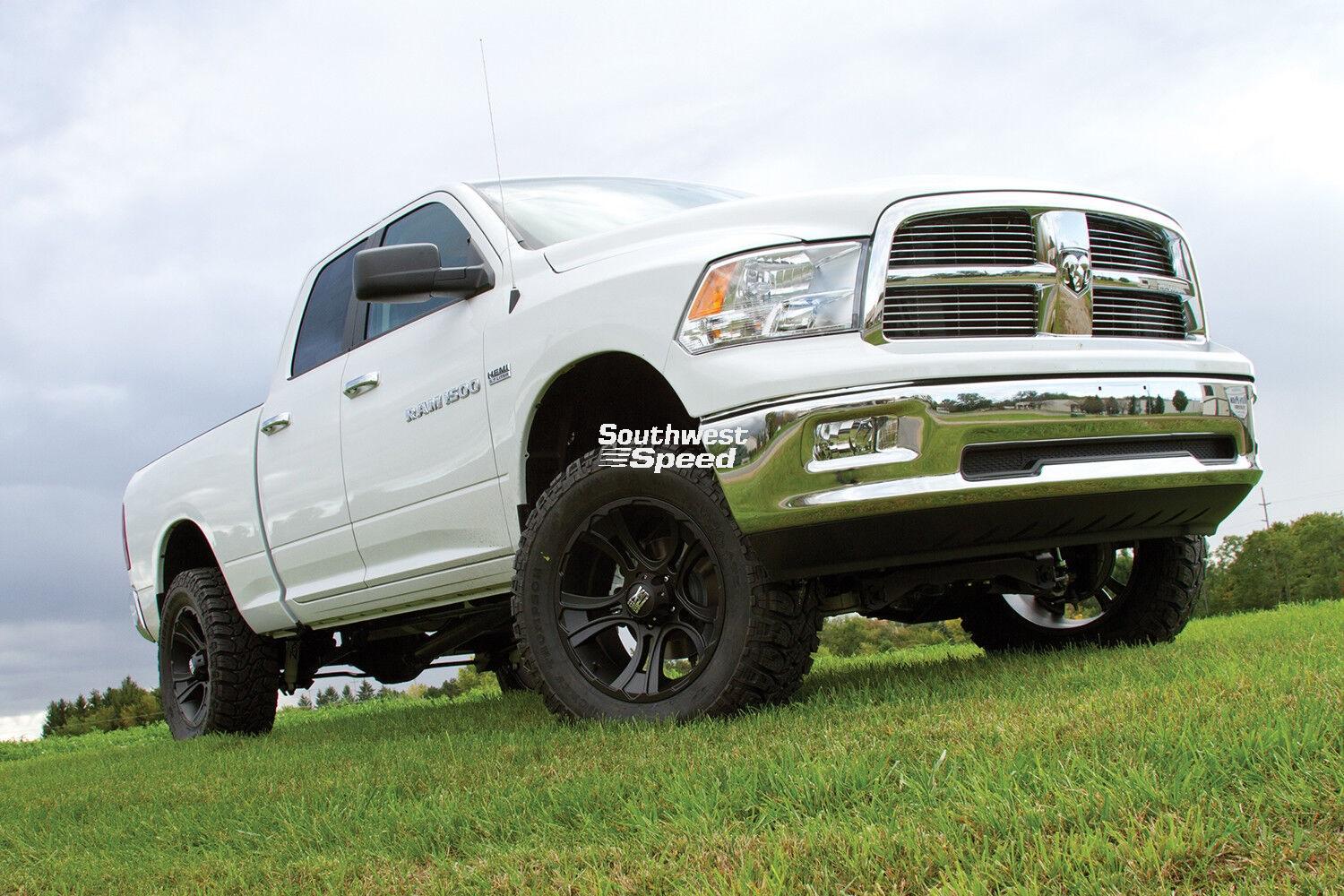

READY FOR THE BIG TIME? THEN THIS IS YOUR 6" LIFT KIT. DESIGNED FOR EASY INSTALLATION, VALUE, RELIABILITY, AND TO STAND OUT, WHICH IS EASY WHEN YOU CAN CLEAR HUGE 37" TIRES. GET THE LOOK AND PERFORMANCE YOU WANT OUT OF YOUR 4WD 2012 DODGE / RAM 1500 TRUCK.

FITS:

• RAM:
• 2012 1500 4WD

FEATURES:

• THIS KIT INCLUDES A 3" REAR LIFT SPRING FOR A LEVEL REAR END; A 5" REAR LIFT SPRING IS AVAILABLE IN A "TAIL HIGH REAR END" VERSION OF THIS KIT.
• CORRECTS SUSPENSION, STEERING, AND DRIVELINE GEOMETRY FOR GREAT ON-ROAD HANDLING AND IMPROVED OFF-ROAD PERFORMANCE.
• HEAVY-DUTY DIFFERENTIAL SKID SLATE IMPROVES OFFROAD PROTECTION.
• HIGH-STRENGTH, CNC MACHINED, REPLACEMENT STEERING KNUCKLES IMPROVE STRENGTH WHILE CORRECTING STEERING ANGLES.
• TOP MOUNT STRUT AND PRELOAD SPACERS SET RIDE HEIGHT AND MAINTAIN RIDE QUALITY.

SPECS:

• FRONT LIFT HEIGHT: 6"
• REAR LIFT HEIGHT: 3"
• FRONT LIFT METHOD: STRUT SPACERS
• REAR LIFT METHOD: COIL SPRINGS
• LIFT TYPE: LIFT KIT
• WHEEL SIZE: 17 X 9
• BACK SPACING: 4.5"
• MAX TIRE SIZE: 37 X 12.5
• WHEEL SIZE 2: 18 X 9
• BACK SPACING 2: 5"
• MAX TIRE SIZE 2: 37 X 12.5
• WHEEL SIZE 3: 20 X 9
• BACK SPACING 3: 5"
• MAX TIRE SIZE 3: 37 X 12.5
• IS ADJUSTABLE: NO
• FINISH: POWDERCOAT
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: NO
• WELDING REQUIRED: NO

NOTES:

• FITMENT: DOES NOT WORK WITH ALL WHEEL DRIVE (AWD) MODELS.
• FITMENT: THIS KIT IS NOT RECOMMENDED FOR TRX MODELS. CV SHAFT VIBRATION WILL OCCUR ON TRX MODELS UNLESS THE TRX STRUTS ARE REPLACED WITH STANDARD STRUTS. INSTEAD, CONSIDER OUR 4" LIFT SYSTEM FOR ABOUT 5" OF TRX LIFT.
• LIFT BLOCK SELECTION: THESE TRUCKS ARE TYPICALLY BETWEEN 1" AND 3" TAIL HIGH FROM THE FACTORY. PLEASE MEASURE YOUR TRUCKS FACTORY FRONT-TO-BACK RIDE HEIGHT AND ORDER THE REAR LIFT HEIGHT TO ACHIEVE THE DESIRED STANCE. IF CLOSER TO 1" TAIL HIGH FROM THE FACTORY ORDER THE 5" REAR COILS FOR A MORE LEVEL STANCE. IF CLOSER TO 3" TAIL HIGH FROM THE FACTORY ORDER THE 3" REAR COILS FOR A MORE LEVEL STANCE.
• NOT RECOMMENDED FOR AWD MODELS.
• STOCK 17" WHEELS CANNOT BE RE-INSTALLED.
• WILL NOT FIT 2013 MODELS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
