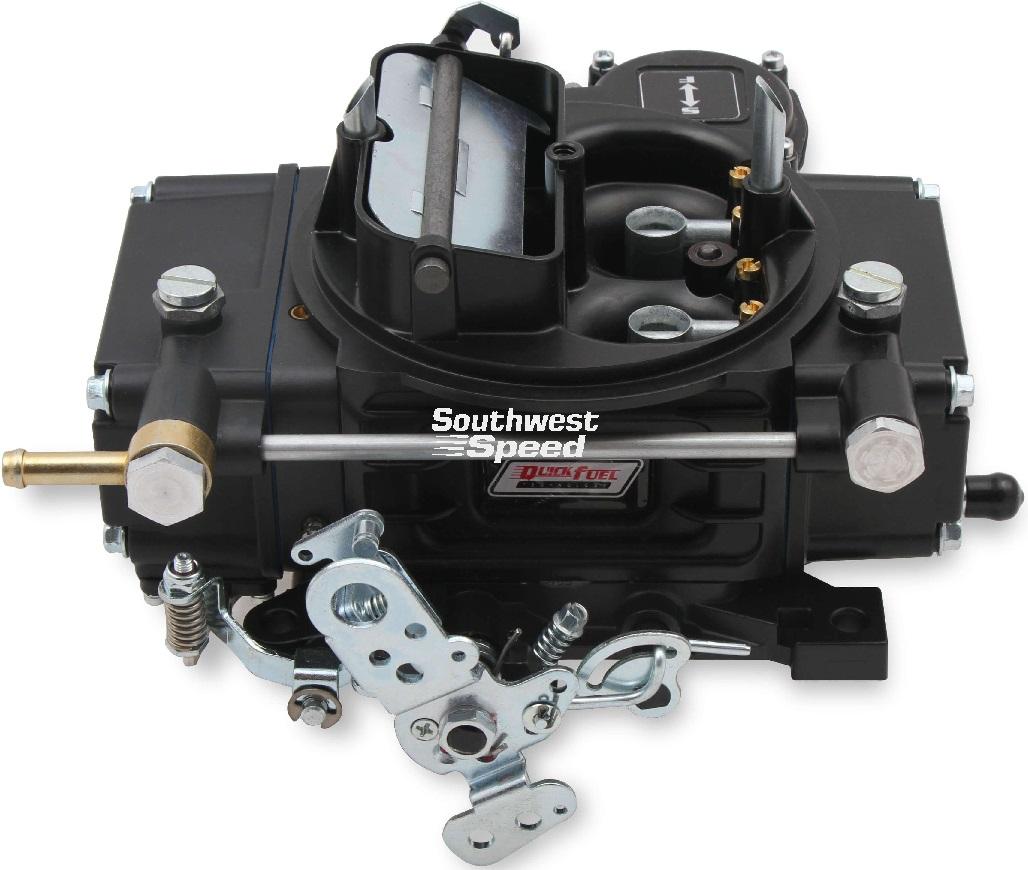

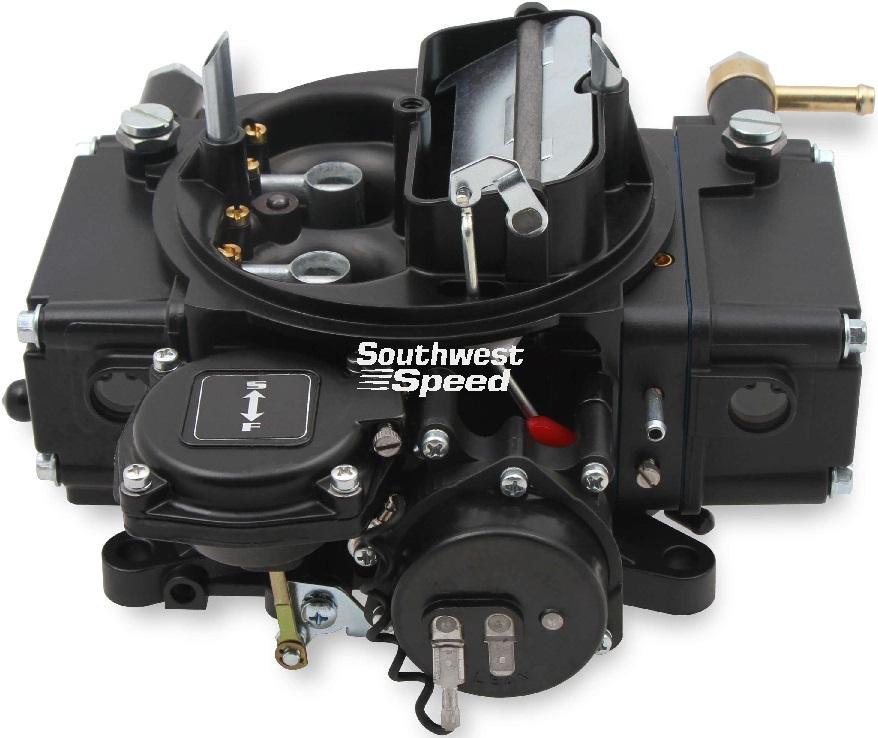

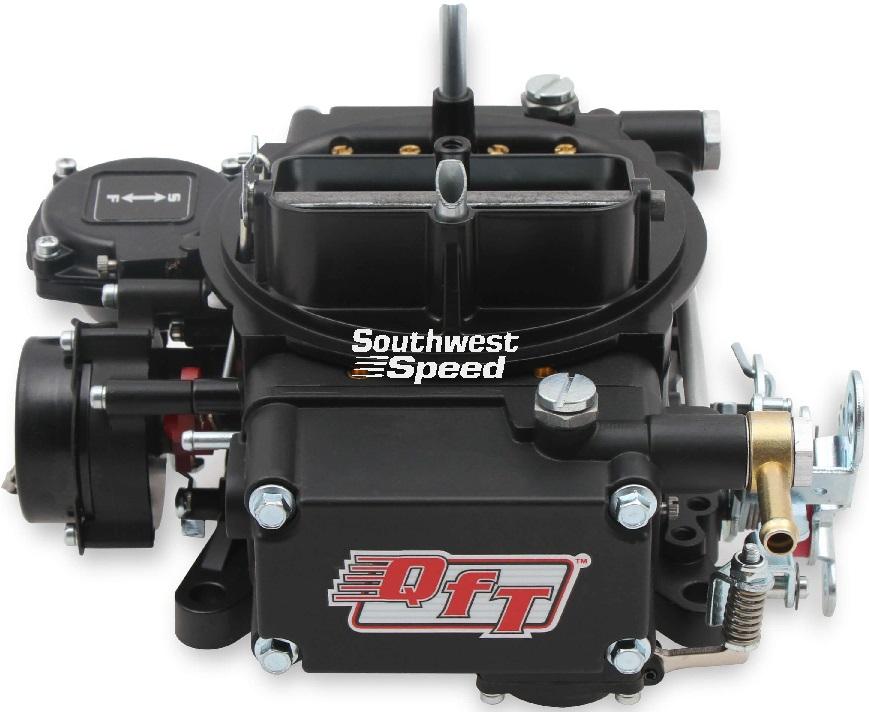

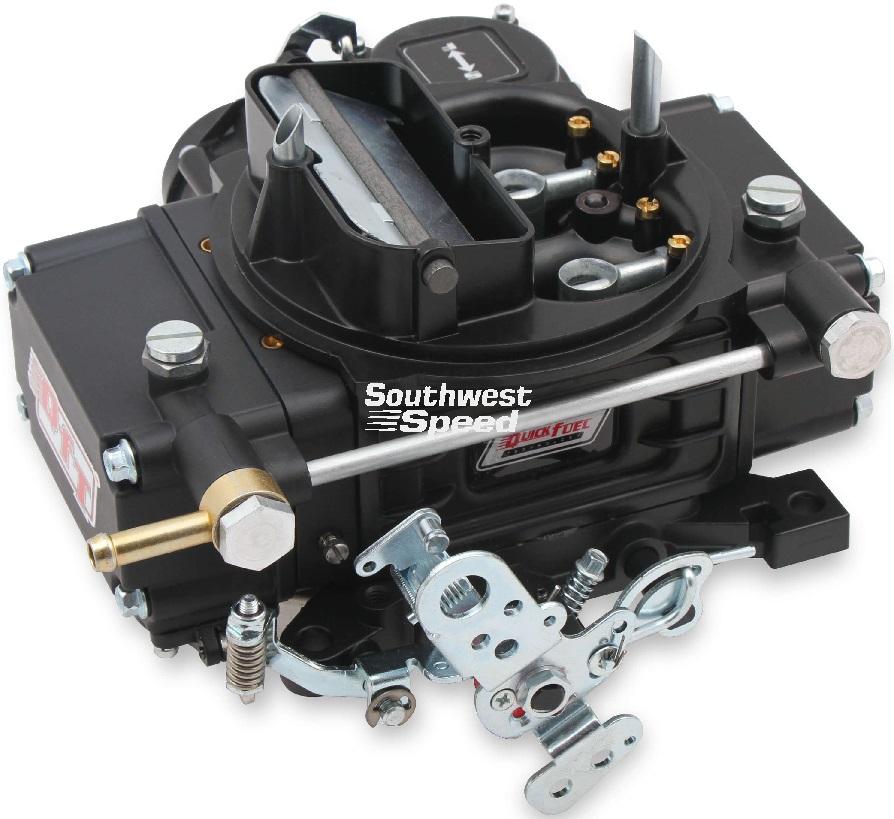

BRAND NEW HOLLEY QUICK FUEL SLAYER SERIES CARBURETOR, BLACK DIAMOND, 600 CFM, VACUUM SECONDARIES, COMPATIBLE WITH 4160 MODELS
SLAYER SERIES STREET CARBURETORS INCLUDE CHANGEABLE AIR BLEEDS & POWER VALVE CHANNEL RESTRICTIONS. DESIGNED WITH A SECONDARY METERING PLATE WITH CHANGEABLE JETS & FEATURES ALL ALUMINUM COMPONENTS. ALSO EQUIPPED WITH UNIVERSAL THROTTLE LEVERS TO ACCOMMODATE F𐐄RD A/T KICKDOWN, GM 700 R4 MOUNTING HOLES & ABILITY TO MOUNT BRACKETS FOR CHRУSLER VEHICLES.
QUICK FUEL TECHNOLOGY PROPRIETARY BLACK DIAMOND COATING OFFERS EXCELLENT CORROSION RESISTANCE & DURABLE FINISH THAT EASILY STANDS UP TO DIRT & OIL. THE PTFE COATING REDUCES FUEL TEMPERATURE BY 6 PERCENT FOR IMPROVED PERFORMANCE.
NOTE: THIS CARBURETOR HAS A SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB, AND AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR, LIKE THE MR. GASKET #1932.
SPECS:
BARRELS: 4
BILLET COLOR: DIECAST-NO BILLET
BOOSTER: STRAIGHT LEG
CARBURETOR USE: STREET
CFM: 600
CHOKE: ELECTRIC
CIRCUIT: 2
FUEL: GASOLINE
FUEL SYSTEM: CARBURETED
HIGH SPEED AIR BLEED: 31
IDLE AIR BLEED SIZE: 73:33
MATERIAL: ALUMINUM
PRIMARY MAIN JET: 66
PRIMARY POWER VALVE: 65
PRIMARY PUMP NOZZLE SIZE: 31
PRODUCT TYPE: CARBURETOR
SECONDARIES: VACUUM
SECONDARY MAIN JET: 74
SUPERCHARGED APPLICATION: NO
THROTTLE BORE: 1-9/16"
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
